Allwinner has announced a new entry-level processor that features competitive price, 4K playback support, a quad-core Cortex-A7 design and ARM Mali-400MP2 graphics. Allwinner H3 is designed for OTT box, or simple said for smart TV boxes and will sell for only $6.

Other specs include support for 10/100 Ethernet, USB 2.0, an SD card, and a 5 megapixel camera sensor. First boxes with the chip should launch this month, on December 20.

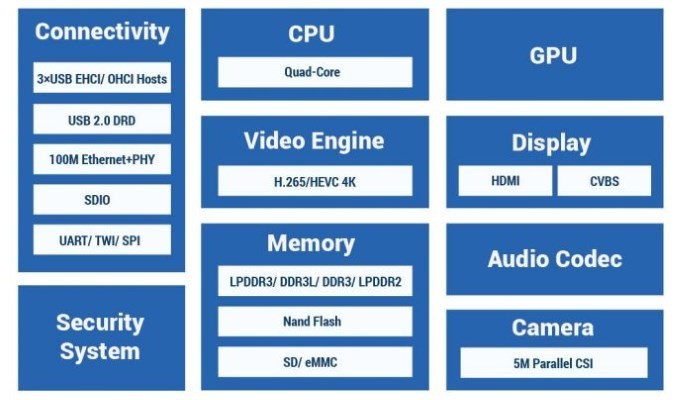

Key features of Allwinner H3:

CPU - Quad core Cortex A7

GPU - Mali-400MP2 up to 600 MHz

Memory I/F

LPDDR2, LPDDR3, DDR3, DDR3L SDRAM

8-bit SLC, MLC, TLC, EF NAND with 64-bit ECC

SD, eMMC, tSD, fSD, and efSD

Video

Decoding - H.265/HEVC and H.264 up to 4K@30 fps, H.264 BP/MP/HP, VP8, MPEG1/2, MPEG4 SP/ASP GMC, H.263 including Sorenson Spark, WM9/VC1, JPEG/MJEPG up to 1080p60

Encoding - H.264 up to 1080p30

Video Output - HDMI with HDCP, CEC, 3D function, CVBS, and dual independent display support.

Camera - 8-bit YUV222 CMOS interface, CCIR656 protocol for PAL and NTSC, 5M pixel camera sensor

Security - Trustzone, mainstream DRM solutions support, secure boot, secure storage, and firmware signature

Integrated Peripherals:

Audio codec

3x USB EHCI/OHCI, USB 2.0 DRD

100M Ethernet PHY

CIR, UART, LRADC, SDIO
